All electrical circuits and equipment need to be protected from damages due to abnormal currents and voltage fluctuations. Protection devices ensure that the current does not exceed the withstanding current limit of your equipment. This is imperative for not only the electrical equipment but also to protect your family, house and office from any mishap. For homes and small buildings, Schneider Electric India offers a range of devices that can help make the electrical installations in your home and offices safer, more reliable and always under control.
Our electrical protection systems are carefully designed to protect your living and workspaces from electrical failures and mishappenings. All Schneider products offer the best-in class customer experience and are created to cater to all electrical protection needs, from protecting people and your electrical equipment to preventing accidents like short circuits and fires. It can all be made possible with our diverse range of miniature circuit breakers, surge protection devices, residual current devices, accompanied by our contemporary, elegant, and easy to install electrical enclosures that compliment modern style built spaces. With our products, you can sit back and not worry about your appliances and circuits.
Electrical protection devices are applied to existing electrical equipment to prevent any mishaps or abnormal functioning. These devices can identify and address unacceptable problems and take necessary corrective action. Some examples of electrical protection devices are lightning arresters, surge protectors, fuses, relays, circuit breakers, reclosers, and other devices.
Every electrical circuit has a maximum voltage or amperage. If this value is exceeded, the wire will overheat, causing the wire insulation to melt and fire to ignite. Electrical protection devices are important because they help protect the occupants and the infrastructure that could incur significant damages caused by electrical accidents. Overloading, short-circuiting, and earth faults are all examples of unintentional electrical accidents that occur without warning. As a result, electrical protection devices must be used in every family, company, institution, and factory.

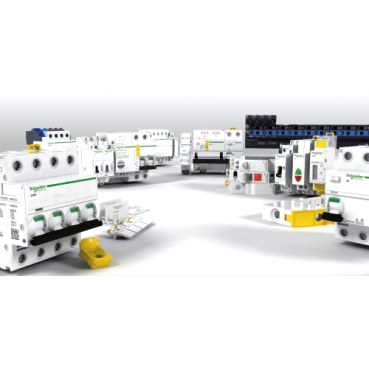

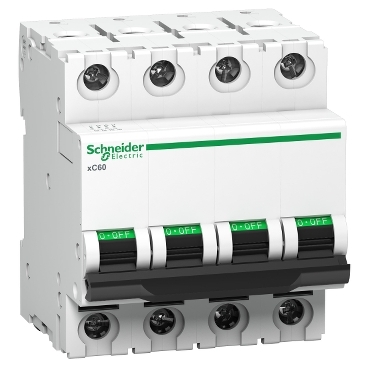

Discover the new Acti 9 range for low voltage DIN rail system up to 63 A. Discover the new Acti 9 range for low voltage DIN rail system up to...
Industrial Miniature Circuit Breaker (MCB) up to 63 A. For secure and sound operations in an industry, ...

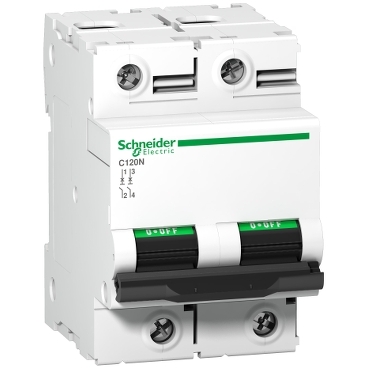

Miniature Circuit Breakers up to 125A. Miniature Circuit breakers up to 125A Acti 9 C120
High performance modular circuit breakers up to 125A. High performance miniature circuit breakers up to 125A

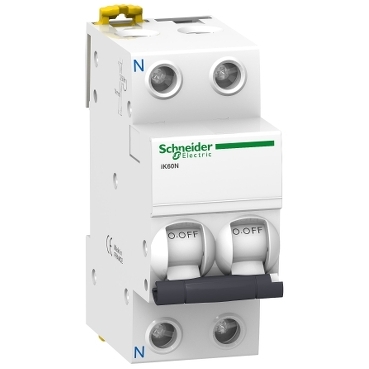

Miniature circuit breaker up to 63A. Miniature circuit breaker up to 63A Acti9 K

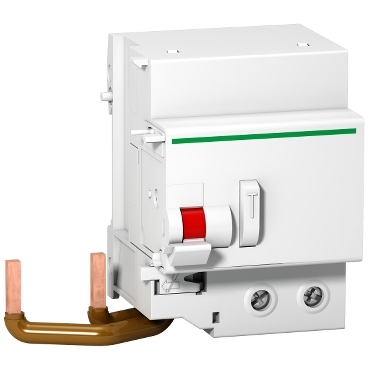

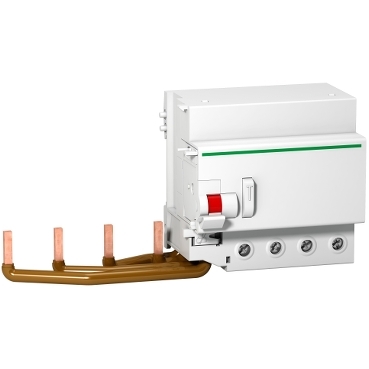

Acti-9 RCD is an easy-to-install and efficient range of devices, suitable for both commercial and residential buildings to provide optimum protection against electrocution, fire, and earth fault. At Schneider Electric India, our skilled team of professional experts has designed an enigmatic range of Residual Current Devices like Vigi for Acti 9 C120, Vigi for Acti 9 NG 125, IDPN Vigi, etc. that provides service continuity and efficiency in most electrical applications installed in homes and industries.
Circuit breakers 0. Formerly named TeSys GV2. Motor circuit breakers providing short circuit and overload protections, manual isolation, man...
Circuit breakers up to 30 kW.
Thermal-magnetic and magnetic circuit-breakers up to 30 kW
Circuit-breakers, coordinated with Deca contactors, to protect motors up to 115 A (55 kW / 400 V)
A compact, robust and innovative...
Circuit-breakers, coordinated with TeSys Giga contactors, to protect motors up to 500 A (250 kW / 400 V). *TeSys GV5 & GV6 range of motor...
Circuit-breakers, coordinated with TeSys Giga contactors, to protect motors up to 500 A (250 kW / 400 V). *TeSys GV5 & GV6 range of motor...
At Schneider Electric India, we aim to be your one-stop destination to meet all your electrical requirements. We have a team of expert professionals who have designed an enigmatic and highly efficient range of contactors and reversing contactors that ensure the electrical circuit of your instrument turns on and off in accordance with the power requirements of the of the equipment.
Some of the many ranges that we offer under contactor relays and reversing contactors are TeSys H, TeSys Deca contactors, TeSys K contactors, and more
A surge protector is an electronic device used to protect the connected equipment from voltage inconsistencies to save the system from different magnitudes of surge voltages, the capacity or magnitude of the arrestor varies. The amplitude can range from a few millivolts to some ten thousand volts. Schneider Electric India comes with a series of surge protection devices that can be installed in the system to ensure protection from over or under voltage. To use this, install a plug-in, point-of-use electrical surge protector. The device can be plugged into a grounded electrical outlet or can be directly connected into the appliance. Lightning protective devices are developed, tested, and classified according to their international series of product standards, and they have defined surge protection functions and performance parameters to make them suitable for use with similar protection concepts.
Hence, it is imperative to have a surge protection device to safeguard your house, family, colleagues and friends from any harm. Every year, many electronic devices get damaged due to transient voltages. This major mishap is protected by surge protection devices. Surge protectors are also used in electrical installation systems for protecting them. Schneider offers a wide variety of surge protectors that help in keeping your loved ones safe. Their Acti 9 range of surge protectors have been in demand since its inception and is preferred by almost every household and construction projects. You can know more about this product here.
Why Choose a Surge Protector ?
Surge Protector helps in rerouting any unsafe current and ensures a consistent power flow to all connected components. Most electronic devices are shipped with voltage-sensitive components that can be easily damaged in situations of a sudden voltage spike. A surge protector detects any form of voltage inconsistency in the circuit and protects the connected devices from both over and under-voltage.
There are three types of power surge protectors:
• Type 1: This Power surge protector is installed at the origin such as the main distribution board.
• Type 2: It is installed sub-distribution boards.
• Type 3: This power surge protector is installed at the protection load.

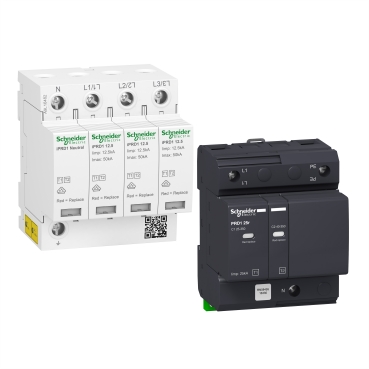

Surge Protection Devices Type 1 or Type 1+2. Surge Arresters Type 1 or Surge Arresters Type 1+2, compliant with IEC/EN 61643-11:2011

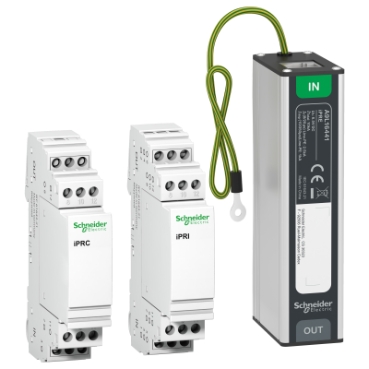

Telcon and IT networks surge protection devices. Providing complete protection to digital networks, our surge protection...

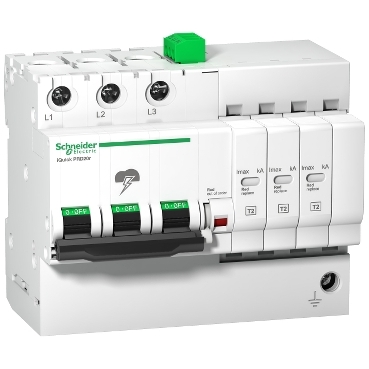

Type 2 Surge Protection Devices with integrated disconnector. The type 2 Monobloc surge arrester comes with an integrated...

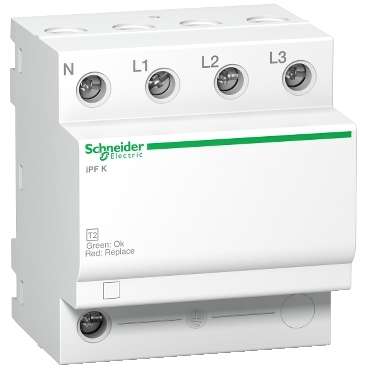

Type 2 surge arresters from 20 kA to 65 kA. A surge arrester is a protection tool that safeguards electrical appliances like compute...

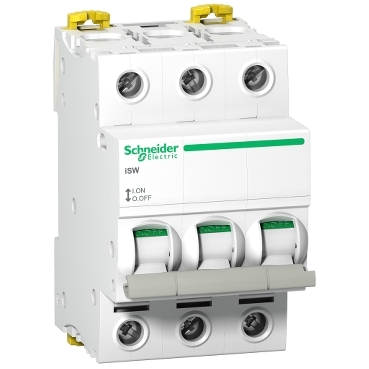

At Schneider Electric India, we are continuously striving for growth and development to meet all your electrical requirements efficiently and effectively. A Switch disconnector combines the properties of a load switch and a disconnector to de-energize the current for service and maintenance. Our competent team of experts has devised a wide range of switch disconnectors to provide you with optimum safety and security. Switch disconnector iSW-1P-40 A-240 V, switch disconnector iSW-4P-63 A-415 V, switch disconnector Acti9 iSW- 2 poles- 32 A- 415 V are some of the many products that we offer under our Acti 9 iSW & SW range.
Digital multifunctional load management solution up to 37kW. TeSys island is designed to switch, protect, and manage motors and...
At Schneider Electric India, our team of experts works diligently to develop and offer a wide range of solutions for installing, designing, maintaining, and inspecting low-voltage electrical installations. We have curated an enigmatic range called Distribloc that carries numerous products to facilitate operations that are inclusive of on-site interventions without any downtime interruptions for smooth and efficient continuity of service. All our iC60 accessories offer safe installation wiring with optimized security for the technician and operator..
When you have made a heavy investment in your electrical appliances, devices, and equipment, it is imperative that you safeguard them with the best available supervision systems. At Schneider Electric India, our team has intelligently designed ranges like Acti 9 Smartlink SI D, Acti 9 Smartlink, and Acti 9 Smartlink SI B that helps you optimally monitor and supervise your large business electrical equipment and transfer data between devices located in final switchboards and a digital network.
Monitor and control your large business electrical equipment via your supervision system. Grow anytime your energy monitoring of...

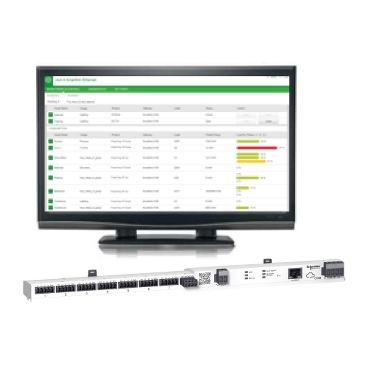

Energy digitization down to final switchboards. Acti 9 Smartlink Modbus slave and Acti 9 Smartlink Ethernet are used to transfer data...

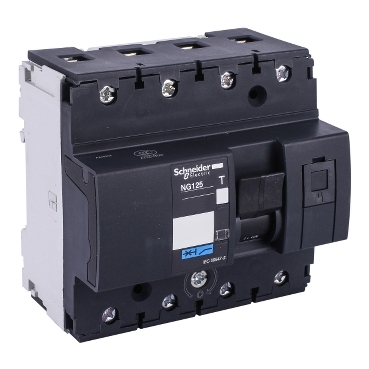

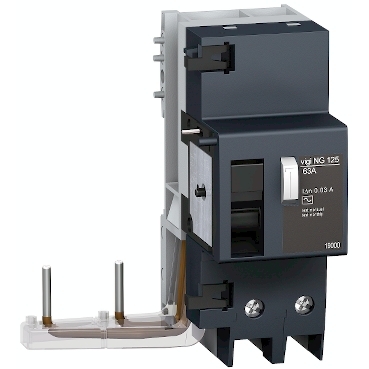

At Schneider Electric India, our team of experts has strategically designed a range of Optional auxiliaries for NG125 that offers user-friendly remote indication, optional control, and tripping auxiliaries for residual current mode and circuit-breakers. They can be used in a variety of circuit-breakers across industrial and tertiary buildings. All our auxiliaries instantly trip when there is a dip in the power supply and when the control circuit is energized. Additionally, they also provide remote indications of the tripped, open, and closed state.

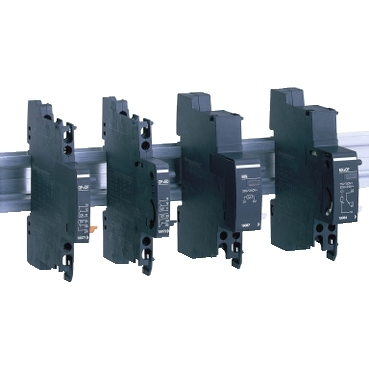

Optional control. Optional control, remote indication and tripping auxiliaries for circuit-breakers and residual current module
At Schneider Electric India, we have devised an array of safe and efficient electrical circuit control solutions for effectively controlling several types of electrical circuits. Suitable for commercial, residential, and industrial buildings, we carry a broad range of auxiliaries that provide you with highly efficient, personalized, and flexible features for reliable control and monitoring. Acti 9 iCT, Acti 9 iTL, and Acti 9 iSSW are some of the many ranges we offer for electrical circuit control.

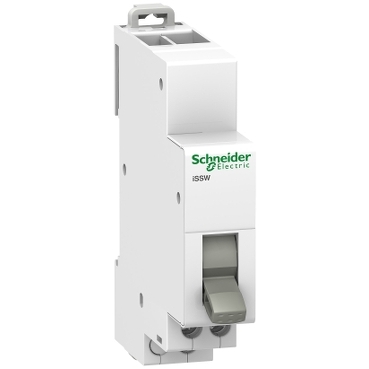

Acti 9 iSSW DIN rail linear control switches designed to provide enhanced protection as well as the opening and closing of circuits...

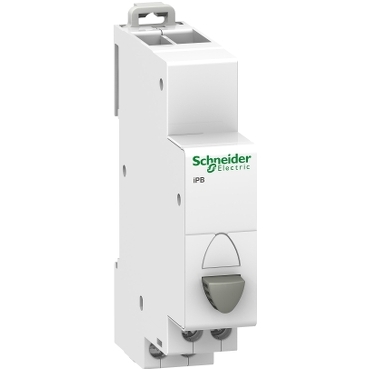

Push-buttons. Discover all the Acti 9 iPB and iSSW DIN rail push button switches and change over switches.

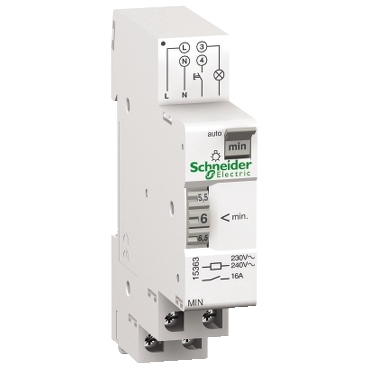

At Schneider Electric, we provide reliable and efficient solutions that enable you to control and manage time, energy, and lighting at commercial and industrial buildings. All our products and solutions help you save a heavy amount of money and energy that you can use to complete other tasks that require immediate attention. Explore our exclusively designed range called MIN that entails a wide variety of time switches that are simple, easy to operate, and ensure maximum comfort.
At Schneider Electric India, our experts carry the right knowledge and resources to formulate innovative electrical solutions that fulfill your electric needs and requirements. When you have multiple electrical equipment in place, it is not possible to keep a check on all of them at once; hence, our professionals have devised an expansive range of light indicators under our iIL range to help you regulate and control your instruments efficiently and in time. Explore our immaculately designed products under this range to discover light indicators that are efficient, simple, and easy to use.
We have a broad and expert panel of professionals who strive to develop new and innovative electrical solutions that meet all the domestic and industrial requirements of the users. At Schneider Electric India, we offer an expansive range of surge protection devices for photovoltaic applications to prevent all the risks associated with lighting. Explore our Acti 9 iPRD-DC-PV range that carries efficient and modular surge arrestors for optimum electrical safety and security.

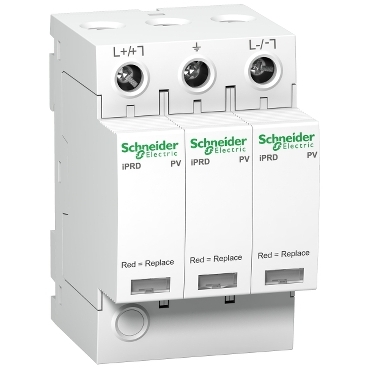

Surge Protection Devices for Photovoltaic applications. Withdrawable Surge Arresters Type 2 for Photovoltaic applications to...
All electrical equipment needs acute observation and optimal protection to ensure that there are no threats of hazardous situations like explosion or fire breakouts. Our highly knowledgeable team of expert professionals at Schneider electric India has intelligently developed multi-standard miniature circuit breakers designed to safeguard your circuit against overcurrent faults and short circuits. Explore numerous products under some of our many ranges like ID-RCCB, C60 UL/CSA MCB’s, and DPN N Vigi RCBO.

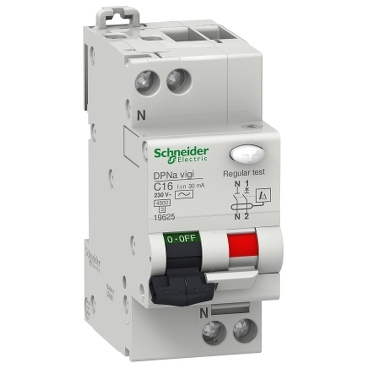

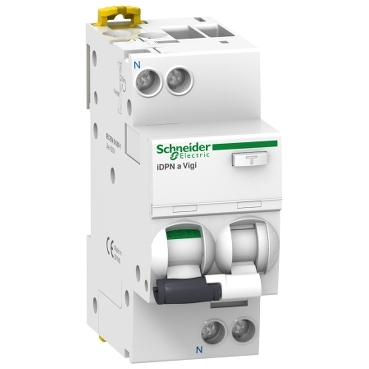

Act 9 DPN N Vigi RCCB with Over Current Protection (RCBO) up to 40A. Act 9 DPN N Vigi RCCB with Over Current Protection (RCBO) up...

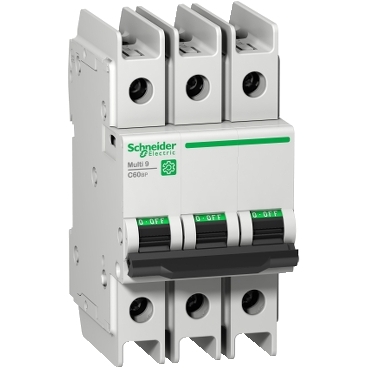

Wide range of Miniature Circuit Breakers for Original Equipment Manufacturers (OEMs) and control panel builders. Multi9 has been...

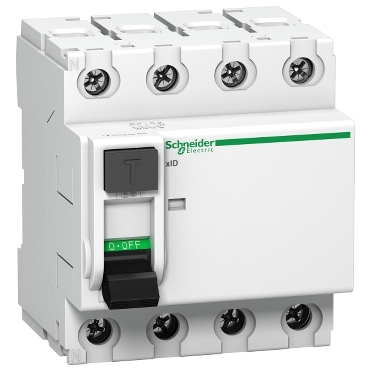

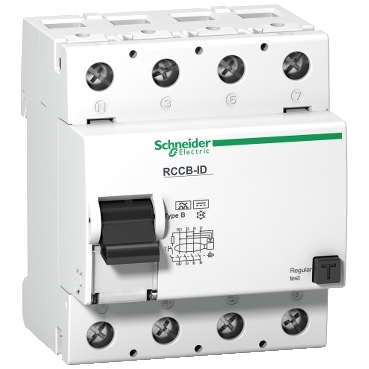

Residual current circuit breakers (rccb) up to 125A. RCCB stands for Residual Circuit Current Breaker, ...

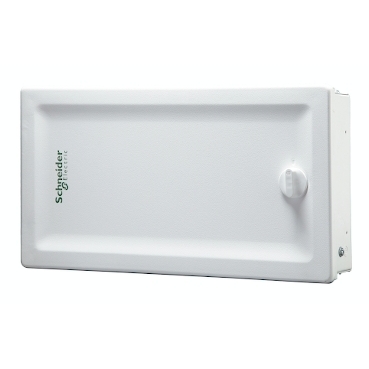

Propel your power distribution systems with Schneider Electric's new-age, reliable, and safe Acti 9 distribution boards. Driven by innovation and technology, these sleek systems are elegant in looks and safe in performance - ensuring the power flow & distribution remains as smooth as possible at all times.
Distribution boards are a critical part of any circuitry in your homes, offices, or any other place. They serve an influential role and cannot be neglected at any cost. One of the most important devices, they make sure that the current is adequately distributed to all the devices facilitating proper functioning. This also makes sure that none of the devices are negatively impacted by the effects of overcurrents or short circuits.. These distribution boards not only save you from the harmful results of current but also augment the look of your walls.
The various designs give you the dynamism to choose the ones that are ideal for your home. Choose from the range of distribution boards available at the best prices and transform the way you live at home.
Power Distribution Boards (PDBs) serve an essential role and cannot be overlooked at any cost. One of the vital devices, they make sure that the current is appropriately distributed to all the devices aiding proper functioning. This also ensures that none of the devices is negatively affected by the effects of overcurrents or short circuits. These distribution boards protect you from the dangerous results of current and augment the look of your walls. The multiple designs give you the dynamism to pick the ones that are ideal for your home. The vertical and horizontal Distribution Boards give you the flexibility to choose the right ones for you.
Power distribution boards are a basic circuit board that connects all the ground connectors to one another and all the positive connectors, allowing you to power all of the equipment on your drone neatly and efficiently instead of having a bird's nest of power cables going between all your gear. Distribution boards are not just a minor enclosure but an overall system in itself, possessing neutral links, interconnecting wires and earth leakage units for the purpose of fitting electrical distribution in your house.
For every device's optimal performance, it is necessary to maintain an appropriate allocation of power and is critical for home and appliance safety. Distribution boards are fitted adequately with DIN rail, BS bars, and neutral link.
What are distribution boards used for?
A distribution board, also referred to as a panelboard, breaker panel, electric panel, DB board, or DB box, is a part of an electricity supply system that separates an electrical power feed into subordinate circuits and provides a protective fuse or circuit breaker for each circuit in a single enclosure.
Components of distribution boards
A few components of a distribution board are:
Circuit breakers:
For electrical circuits, circuit breakers act as automatic protective equipment. They minimize electrical damage to equipment during electrical surges and limit the amount of electricity that can flow through a live circuit at any given time.
Bus bars:
The "bus bar" is a crucial component in the process of transmitting electric supply from the main supply line to individual circuits. It is made up of a metallic strip or bar with several conductors. The bus bar draws electricity from the main supply cord.
Bypass equipment:
In order to maintain a steady supply of energy to electrical appliances even when the in-line circuit is malfunctioning or has been disconnected for maintenance and servicing, bypass equipment is employed as a fail-safe mechanism
Residual current device:
Residual Current Devices (RCDs), like circuit breakers, are mounted on a circuit for security and accident avoidance. RCDs continuously check the live circuit to make sure there are no current leaks.
What does a distribution board contain ?
The following parts make up a standard electrical distribution board: a bus bar, fuse links, switches, bypass equipment, and a residual current detector (RSD). The following must be ensured by distribution boards:
•The circuitry shouldn't be subjected to an overcurrent due to the fuse.
•As long as it is not near any water splashes, it should be simple to install and have enough room for additional wires, fixtures, and connections.
On the basis of applications and requirements, an electrical distribution board can be of three types:
Fuse box: This is the main unit where all the electricity is controlled as well as distributed.
Main Breaker Panel: It protects the circuits all the while managing the panel's amperage capacity.
Subpanels: They are used in distributing power to specific areas of a facility.
The functions of electrical systems in modern times simply cannot be understated. These electrical systems have gone above and beyond the call of duty to guarantee that technology takes precedence in modern times. Without the proper devices to take care of these modern forms of technology, it’s only a matter of time before this technology implodes and fails to operate as they should. This makes it important to maintain optimal electrical systems that can guarantee a sustained flow of electricity in industries and homes. Only by doing so can we utilise these electrical systems without stressing about the potential damages that can arise as a result. In the simplest of terms, these sockets are an outlet where electrical appliances can be plugged in to complete a circuit and channel electricity to the product in question. While it might seem like an extremely basic form of technology at first sight, electrical sockets have actually proven to be an extremely useful and popular tool that has helped immensely in the completion of circuits and the electrical flow to various devices and machines. All this can be achieved with Schneider Electric’s reliable sockets and enclosures for power outlets.With top-quality products like Schneider Electric India’s power outlets in the market, here are the benefits of exploring these new product ranges – 1) Security - If a plug is not secure, it is quite possible that you are wasting energy and subsequently damaging both your socket and plug. A loose plug can even lead to dangerous sparks and a potential fire hazard. These loose fittings usually occur after a sustained period of wear and tear, which makes it essential to replace them over time. 2) Number and Positioning of Outlets - By upgrading your electric sockets and power outlets, you have the option to transform your infrastructure in terms of revamping the number of outlets as well as the location of these outlets. 3) Damage Restoration - Another clear benefit of replacing or renovating your outlets is the opportunity to rectify all the damage done over the years. This can be explained with the help of an example - a cracked outlet plate more often than not leaves outlets prone to dust and debris buildup. The dust and debris could result in a fire hazard when exposed to electrical shocks and elements. Replacing the outlet will remove the risky hazard of damage or injury.

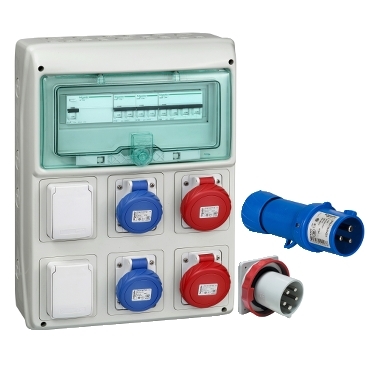

Industrial plugs and sockets IEC and dedicated enclosures. Fully compliant with IEC 60309 standard, PratiKa industrial plugs and sock...
