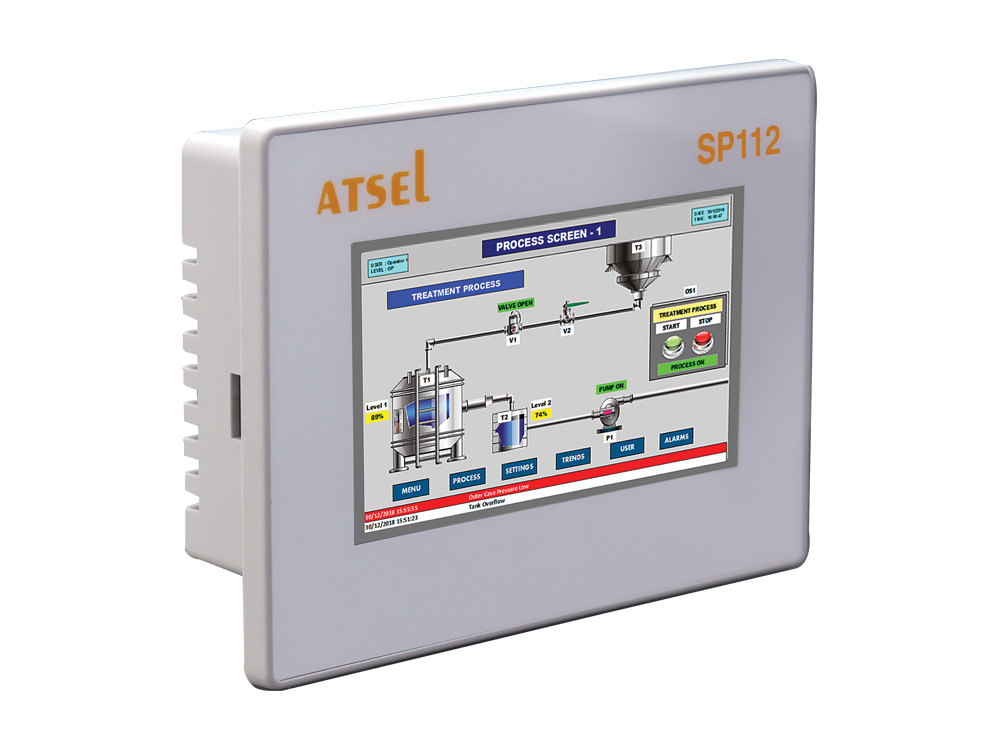

4.3 INCH TOUCH HMI

Product: SP112-GT40
  • 4.3" HMI with Resistive touch screen colour display with serial (RS485/RS232), ethernet communication and USB2.0 port
  • Features : Inbuilt ladder, macros and RTC functions
    • Third party Inbuilt Communication protocols
  • Functionalities : User management, alarm management, data logging capability (with internal 128MB and external Pendrive) and serial printing capability
  • Auxillary supply : 24VDC
Data Sheet
View Product Variants

Brief Specifications

Display Type 4.3" LCD Screen (65536 colors)
Resolution 480 x 272 Pixels
User Memory 256MB Flash + 256MB DRAM
Supply Voltage 24 VDC
Data logging Inbuilt ( Upto 100000 logs )
Display Configuration 4.3" Resistive Touch Screen
Size 129 x 93mm
Communication Serial : COM1 (RS485), COM2 (RS232) , Ethernet : ETH PORT(10M / 100M Self Adaptation) , USB : USB Port (USB 2:0)
Real Time Clock (RTC) Yes
Data Logging Yes
Recipes Yes
Alarms Yes
Password Yes
Ingress Protection IP65
Working Temperature 0°C to 50°C

Product Variants

Product Code Description Certification
SP112-GT40-ET-CE HMI - 4.3 Inch Resistive Touch Screen with Serial & Ethernet CE, RoHS
SP112-GT40-S-CE HMI - 4.3" Resistive Touch Screen with Serial CE, RoHS
